Portable high-frequency X-ray Mini Ray Woodpecker

Portable x-ray mini Ray

Complete set:

• Packaging cardboard box
• X-ray machine
• Protective cap for the tube
• Charging unit
• Extension cable and remote control

Features:

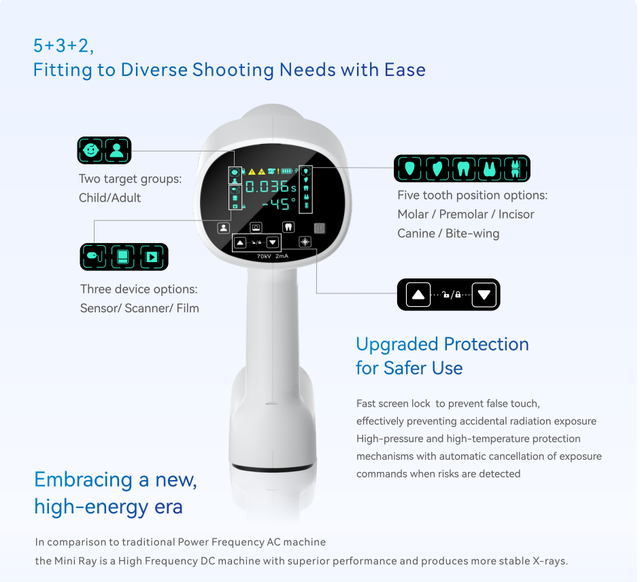

• LED display - not touch screen,
• Control is carried out by touch buttons displayed below the display
• Body made of glossy plastic
• Weight 2.2 kg
• Imported high-frequency Canon X-ray tube from Japan
• Radiation power up to 210 W.
• Super high performance
• Shorter exposure time at high power
• Stable, accurate and fast photography of various positions of teeth
• The 0.4mm focal x-ray tube provides high quality, clearer images for a variety of diagnostic needs.
• Large capacity lithium battery 25000 mAh.
• Unique minimalist design for the most comfortable work
• 2.8-inch touch screen.
• Intuitive and convenient interface
• Minimal X-ray leakage
• Maximum protection of the doctor and patient from radiation

Specifications:

• Power adapter input: 100-240V 50/60Hz 1.5A
• Internal power supply: 10.8 VDC

X-ray tube:

• X-ray tube model: KL11-0.4-70;
• focal spot: 0.4 mm;
• aiming angle: 12 °;
• General filtration: 1.5 mm Al/70 kV;
• Additional filtering: 0.8 mm Al/70 kV
• Size: 338mm*112mm*247mm
• Weight: 2.2 kg
